Technical Specifications

The World's Fastest 3D Measurement Devices for Firearm Forensics
Validated Tools for Virtual Comparison Microscopy

TopMatch-3D High-Capacity
Desktop Scanner

Fastest and Highest Resolution and Validated 3D Virtual Comparison Microscopy System
Imaging Sensor
12.2MP (4024x3036 pixels)
X-Y Sampling Resolution
Typical Operation at 1.8 microns/pixel
Depth Resolution
Better than 1 micron
Fast
Primer scans in less than one minute
X3P Support
Full X3P Support
Scanner Size / Weight
19" wide x 10" deep x 21" tall; 48 lbs
(Not including desktop computer)
Batch Tray
Custom 15 cartridge case mounting tray
Motorized Scanning Platform
X, Y, and Z axes
Cartridge Case and Shotshell Scanning
Primer, Aperture Shear, Firing Pin, Head
Bullet Scanning
Intact Bullets
TopMatch Database, Analysis, and Search Software
Computer Workstation
Multi-Core High-End Windows Desktop Machine
27" Ultra-High Reslution 4K Display
50,000 Scan Storage Capacity
(expandable)
Full Service
Maintenance and Support Package

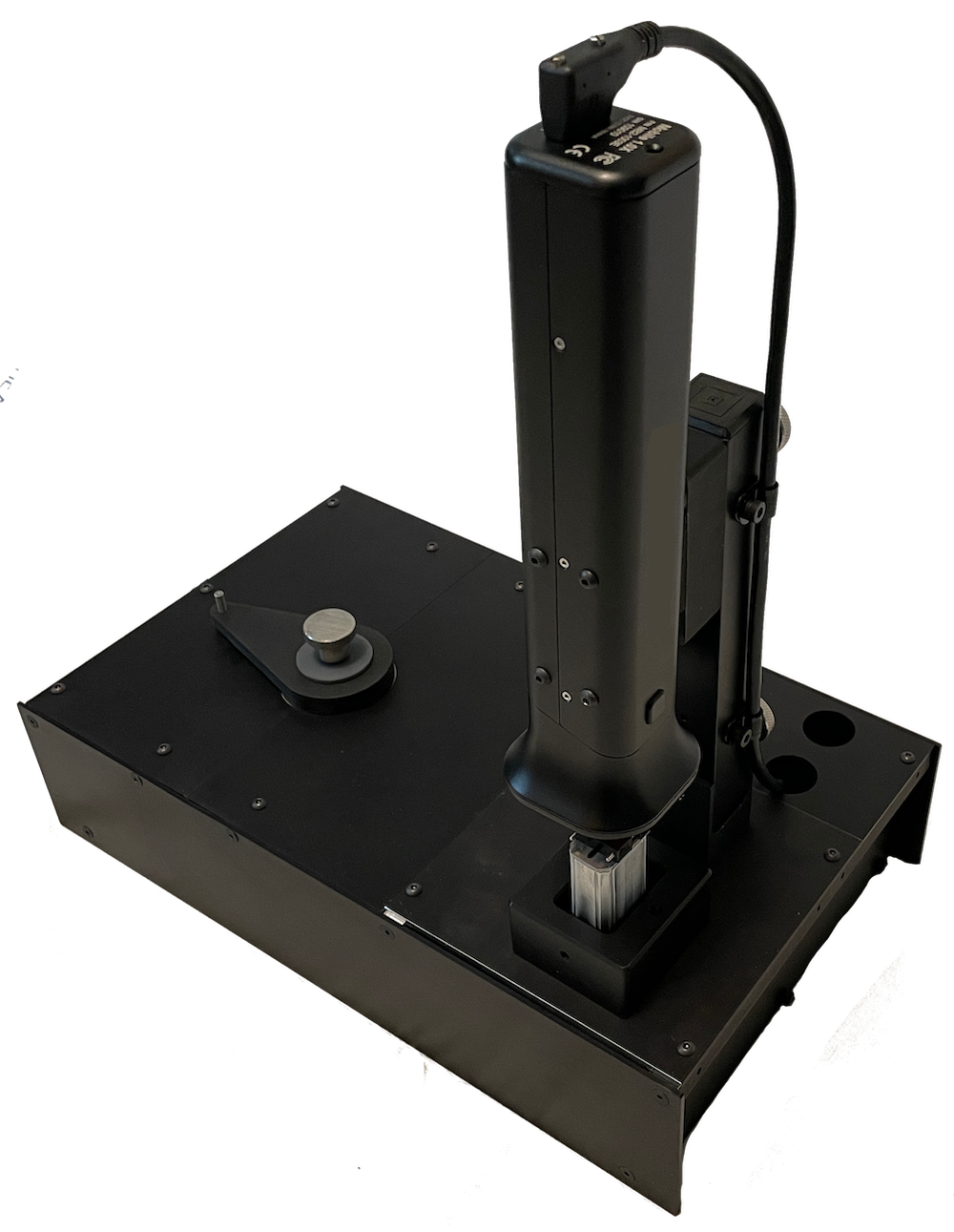

TopMatch-3D
Versa Scanner

Fastest, Most Accurate Portable Scanning System for 3D Virtual Comparison Microscopy
X-Y Lateral Sampling Resolution
2.8 microns/pixel
Depth Resolution
Approximately 1 micron
Fast
Primer scans in 5-10 seconds
X3P Support
Full X3P Support
Scanner Size / Weight
Appx: 15" wide x 9" deep x 15" tall; 8 lbs
(Not including laptop computer or rugged case)
A/C or Battery Operated
No special power requirements. Scanner powered off laptop
Abilty to scan Cartridge Cases / Shotshells (no FPIs), Intact Bullets, Bullet Fragments, Damaged Bullets, Mushroomed Bullets, Casts, General Toolmarks. Multiple specimen fixtures included (cartridge case, shotshell, bullet, toolmark, etc.).
TopMatch Database, Analysis, and Search Software
Laptop Computer
Ruggedized Multi-Core High-End Windows Laptop Machine
30,000 Scan Storage Capacity
(expandable)
Full Service
Maintenance and Support Package
Updated Brochure Coming Soon
TopMatch Versa Flyer

Request a Quote
